Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations
Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations
Contattaci

Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations

Quantità di ordine minimo : 1 set Prezzo : USD 1-10000/set
Imballaggi particolari : Pollywood Tempi di consegna : 30-50 giorni
Termini di pagamento : L/c, t/t, d/p Capacità di alimentazione : 10 set/mese
Luogo di origine: Cina Marca: ZZ TOP OIL TOOLS
Certificazione: ISO, API Numero di modello: Testa di controllo dell'iniezione grasso

Informazioni dettagliate
Prodotto: Testa di controllo dell'iniezione grasso Materiale: Acciaio in lega
Pressione di lavoro: 10000psi Applicazione: Operazione del cavo
Utilizzo: Attrezzatura per il controllo della pressione cablata Connessione: Unione Martelli
temp.: -29～121℃
Evidenziare:

10000psi Grease Injection Control Head

,

Hammer Union Grease Injection Control Head

,

Alloy Steel Wireline Pressure Control Equipment

Descrizione di prodotto

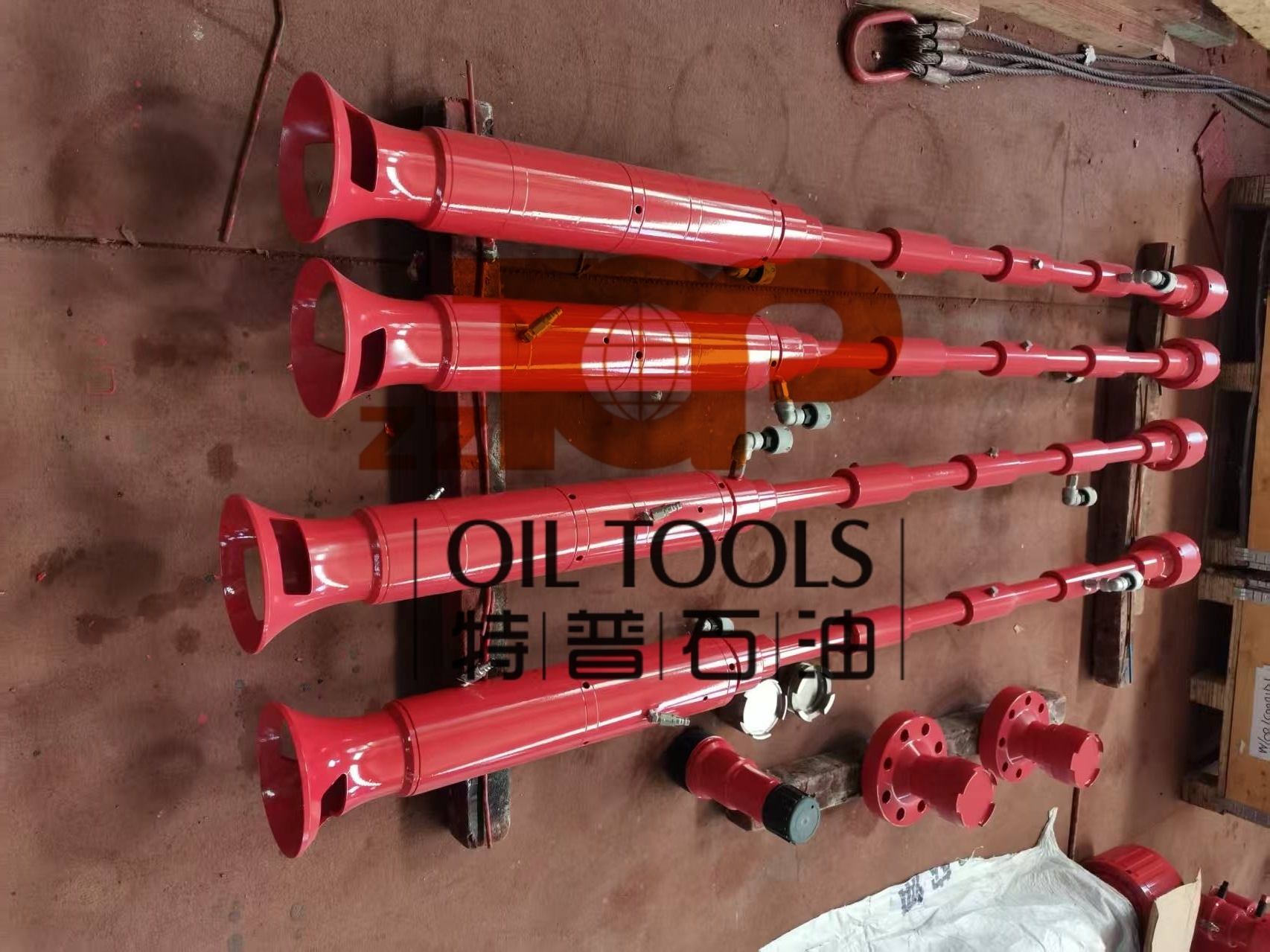

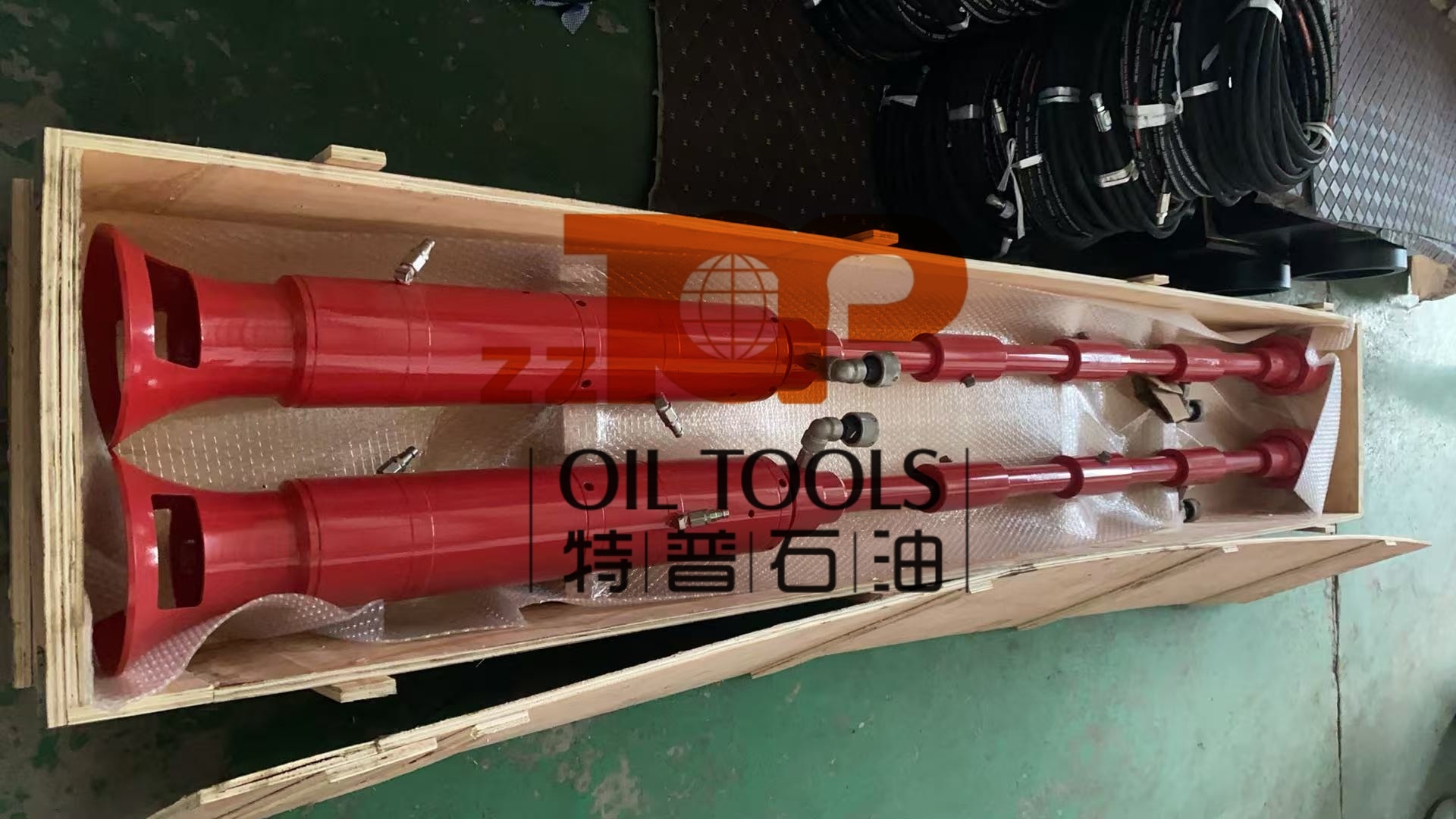

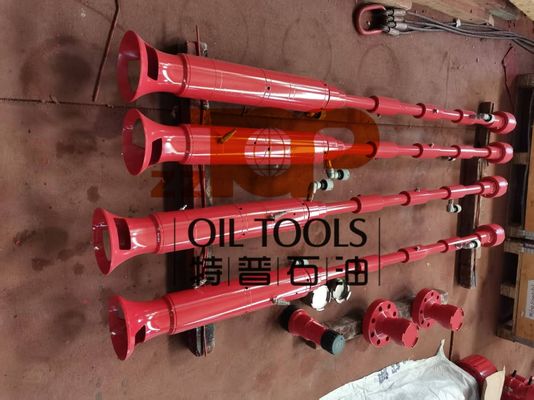

Grease Injection Control Head Assembly with Stuffing box and Wireline Wiper

The Grease Injection Control Head is a sealing device designed for braided cable wireline operations, providing effective wireline sealing functionality. This essential component is used across various oil and gas well applications where pressure control is critical during wireline operations, particularly when fluid or gas loss cannot be tolerated.

Key Features
  • Positioned at the top of the pressure control equipment string
  • Combines Line Wiper Bell, Stuffing Box, Flow Tubes assembly, and ball check valve
  • Essential for maintaining well integrity during high-pressure operations
Technical Specifications
Wire Size Working Pressure Qty. Of Stuffing Box Qty. Of Flow Tubes Qty. Of Hydraulic Port Qty. Of Grease Injection Port Qty. Of Grease Return Port Service Working Temperature
7/32"
5/16"
15/32"		 5000Psi 1 4 2 1 1 STD or H2S P+U -20°F~+250°℉
Or As Required
10000Psi 1 6 2 1 1
15000Psi 2 9 3 2 1
Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations 0
